offset key for stretched chain

Hello all. I have a 617 Mercedes 300sd 1983 turbo diesel. I have recently checked the timing chain.
I checked it with the two timing marks.
I am not happy.

The car currently starts and idles ok.
But, it is extremely lethargic at its acceleration.

The timing mark at the cam matches.
The mark at the outside pulleys is on 15 degrees BEFORE the OT timing.
I am confused by this.
I thought that chain stretch would make it read in degrees AFTER the OT TDC timing mark.

Can someone please tell me why it is reading like this?? Is it because the chain skipped a tooth?
How can I changed the chain back?
I see that you can place a 4,6,8, or 10 degree key in so that it retards or advances the timing.

Is this my best option?
Or should I replace the chain altogether?
The side of the chain tensioner is tight.
The other side is on the loose side.

Again thanks, goldveg
.

__________________
1985 W126 300sd

Last edited by whunter; 03-14-2014 at 01:02 AM. Reason: readability
Reply With Quote
  #2
Old 03-14-2014, 01:08 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
FYI

Timing Chains Don't Last Forever
Timing Chains Don't Last Forever

Diesel Timing Chain Links Thread
Diesel Timing Chain Thread - PeachParts Mercedes ShopForum

Diesel Injection Pump Timing Device threads
Diesel Injection Pump Timing Device threads - PeachParts Mercedes ShopForum

Diesel Injection Pump TIMING thread
Diesel Injection Pump TIMING thread

Diesel Harmonic Balancer threads
Diesel Harmonic Balancer threads


.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
1984 190D
2003 Volvo V70
2002 Honda Civic

https://www.boldegoist.com/

Last edited by whunter; 03-14-2014 at 09:49 AM.
Reply With Quote
  #3
Old 03-14-2014, 07:20 AM
Registered User

Join Date: Nov 2013
Posts: 17
15 degrees before tdc mark

Hello and thanks again. I realize that many people ask questions on here. I know that it is easy to provide me with threads that have a broad base of information. I have spent hours reading threads and links in threads. But, I have a more specific question. Why am I getting a reading of 15 degrees before TDC? I would logically think that all chain stretch leads to 5 - 15 degrees AFTER TDC. Please save me some time. Thanks again, Kev
__________________
1985 W126 300sd
Reply With Quote
  #4
Old 03-14-2014, 08:02 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by goldveg View Post
Hello and thanks again. I realize that many people ask questions on here. I know that it is easy to provide me with threads that have a broad base of information. I have spent hours reading threads and links in threads. But, I have a more specific question. Why am I getting a reading of 15 degrees before TDC? I would logically think that all chain stretch leads to 5 - 15 degrees AFTER TDC. Please save me some time. Thanks again, Kev
The alignment of the notch with the graduations at the crank is a notoriously poor method of assessing the chain elongation. It is very hit and miss and not very reliable.

The 2mm lift method is the approved method of doing it. See this DIY in the wiki

PeachPartsWiki: Measuring Timing Chain Stretch

There's the offset key install DIY here too

PeachPartsWiki: Camshaft Woodruff (offset) Key install

A well respected member suggested that if no clock gauge is available you can lean your chin on say the front of the engine or the front of the engine bay and estimate the drop of the valve spring by placing a ruler behind. This of course is not as accurate as a clock gauge but because the off set keys only come in set sizes the error in your measurement is likely to be within the sizes that are available.


###########


Help for doing the job

1) Remove the glow plugs to help spin the engine - no sense in fighting compression
2) Only do this measurement with the chain tensioner fitted
3) Crank the engine ONLY in a clockwise direction - seen from you standing in front of the engine looking at it
4) Use a 27mm deep socket on the crankshaft bolt do not turn from camshaft cog - I don't like to read about people turning from the power steering pump either so don't tell me if you do that!!!
5) IMPORTANT - remove bolt for camshaft cog to check for an existing offset key before you order a new one
6) Make this measurement more than once - make sure you get repeatable results before changing anything
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #5
Old 03-14-2014, 09:42 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042
Maybe something happend to the pointer and bent or moved it?

This was mine at 198K Miles.
The pic on the Right is a split picture with the Camshaft Gear and on the other side is the Crankshaft Dampner.
Attached Thumbnails
offset key for stretched chain-cam-timing-marks-blow-up-mar-14.jpg   offset key for stretched chain-cam-timing-marks-mar-14.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #6
Old 03-14-2014, 10:13 AM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Answer

Quote:
Originally Posted by goldveg View Post
Hello and thanks again. I realize that many people ask questions on here. I know that it is easy to provide me with threads that have a broad base of information. I have spent hours reading threads and links in threads. But, I have a more specific question. Why am I getting a reading of 15 degrees before TDC? I would logically think that all chain stretch leads to 5 - 15 degrees AFTER TDC. Please save me some time. Thanks again, Kev
If the reading is correct ???

* Previous owner installed a new chain, and lost timing.
* The cam sprocket was removed and re-installed backward.
* The harmonic dowel's are broken = shifted position.
* The timing chain tensioner is damaged.

At this late date, Offset keys are not a wise choice.

Timing Chains Don't Last Forever
Timing Chains Don't Last Forever

.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
1984 190D
2003 Volvo V70
2002 Honda Civic

https://www.boldegoist.com/
Reply With Quote
  #7
Old 03-14-2014, 12:05 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
By my calculations the engine would be in trouble if the camshaft notch aligned and the crankshaft was at 15 degrees before TDC - the intake valve is meant to open at 9 degrees after TDC - with a bit of elongation after 20,000 km chapter 05-215 in the FSM reckons this valve will open at about 11 degrees after TDC...

...seems to me the inlet valve would be open just as the piston was at TDC
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #8
Old 03-14-2014, 12:07 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by whunter View Post
...
* The cam sprocket was removed and re-installed backward.
...
Is this possible? I thought mine had a notch that aligned with the woodruff key position on the camshaft.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #9
Old 03-14-2014, 02:43 PM
cho's Avatar
cho cho is offline
diesel power

Join Date: Dec 2011
Location: Europe
Posts: 934
small OT

Quote:
Originally Posted by Diesel911 View Post
Maybe something happend to the pointer and bent or moved it?

This was mine at 198K Miles.
The pic on the Right is a split picture with the Camshaft Gear and on the other side is the Crankshaft Dampner.

11-5=6 .... did you go with 4 key?

.
__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered
Reply With Quote
  #10
Old 03-14-2014, 03:09 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Yes

Quote:
Originally Posted by Stretch View Post
Is this possible? I thought mine had a notch that aligned with the woodruff key position on the camshaft.
It is possible, and even fairly common for beginners on the OM616 - 617..

.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Vehicle build.
Fleet Durability
Technical Quality Auditor.
Automotive Technical Writer

1985 300SD
1983 300D
1984 190D
2003 Volvo V70
2002 Honda Civic

https://www.boldegoist.com/
Reply With Quote
  #11
Old 03-14-2014, 03:20 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042
Quote:
Originally Posted by cho View Post
11-5=6 .... did you go with 4 key?

.
Doing this sort of check is not the same as doing the 2mm Method so you would not be using the 2mm Method Specs.

I have not checked it recently but it is on about 2.5 degrees after OT (Top Dead Center) and the closest Offset Key is for 4 degrees.

All the Number in the pic above Zero are after top dead center. So in My case the Pointer does not quite point to 2.5 ATDC but I think that is due to the Camera Angle. So I am not yet a candidate for an Offset Woodruff Key.
If it was 4 or more degrees ATDC then I would be a candidate for the Offset Key. I would also do the 2mm Method go be sure.

But here is the Bugger. I have also not checked to see if some Previous Owner installed an Offset Key.
Attached Thumbnails
offset key for stretched chain-cam-timing-marks-mine-blow-up-mar-14.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #12
Old 03-14-2014, 03:25 PM
cho's Avatar
cho cho is offline
diesel power

Join Date: Dec 2011
Location: Europe
Posts: 934
.

is there any way to recognize if someone has mounted cam sprocket
wrong... stamps or marks on face or backside of sprocket?

ty
.
__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered
Reply With Quote
  #13
Old 03-14-2014, 03:32 PM
cho's Avatar
cho cho is offline
diesel power

Join Date: Dec 2011
Location: Europe
Posts: 934
Quote:
Originally Posted by Diesel911 View Post
Doing this sort of check is not the same as doing the 2mm Method so you would not be using the 2mm Method Specs.

that is valuable info for me at least as I always thought that same rule
apply for ballpark and 2mm.... read the balancer and subtracts from 11 (for my engine) to get real stretch.

thanks mate!


.
__________________
w126 500SEC gen II euro, powered by OM617 turbo stolen from 84 300SD 2.88 diff,EGR blinded
next wish/project: w114 coupe OM603 powered
Reply With Quote
  #14
Old 03-14-2014, 10:35 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042
Quote:
Originally Posted by cho View Post
that is valuable info for me at least as I always thought that same rule
apply for ballpark and 2mm.... read the balancer and subtracts from 11 (for my engine) to get real stretch.

thanks mate!


.
I actually don't know as I have not done the 2mm Method or installed an Offset Key to see what it actually does.
I just try to understand as best I can how things work.

But, in general when the offset Key Moves the Camshaft Gear rotation of the Camshaft Gear 1 degree changes 2 degrees on the Crankshaft.

I guess I will have to pull out the Manual and take a better read of the Instructions on the 2mm Method.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #15
Old 03-14-2014, 11:06 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 51,042

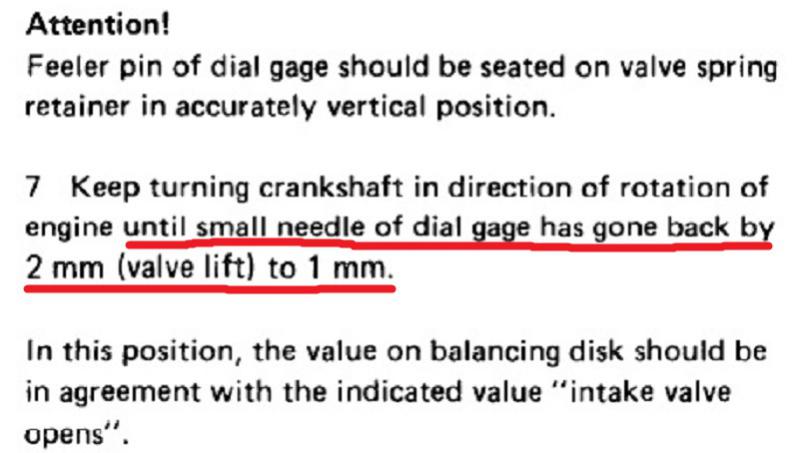

I still do not get part or the 2mm Method.
Since the Dial Indicator was set at Zero I am not getting how this happens: "Dial Gauge has gone back by 2mm (valve lift) to 1mm.

I will likely have to read someoned DIY to understand it.

In the Offset Key Selection Chart it looka like if you did the Camshaft Alignment you could use that to select an Offset Key. However, the camshaft Alignment is not a precision as the 2mm Method.

And, then there is the Chart on the first page of the PDF. It has a New Chain and used chain if I remember with 20,000 miles on it specs. I don't recall the instructions saying which of the 2 to use to selecte the offset Key.

People have suggested that the 20,000 Miles is sort of the expected stretch; sort of a break in stretch that was calculated on at the Factory. So you would think that if you were installing a Offset woodruff Key on an Used Chain you would use the Used Chain you would use the Used Chain specs.

So for Me there is a few unknowns.
Attached Thumbnails
offset key for stretched chain-offset-woodruff-key-selection.jpg   offset key for stretched chain-2mm-method-part-instructions.jpg

__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 03:04 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2024, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2024 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
