W201 Rear - in differential - ABS sensors - alternatives?

G'day Folks,

I was wondering if anyone has come across this problem before.

"Price of W201 rear ABS sensors" at the dealership - holy crap!

Perhaps some one who is at one with electrickery has found an alternative?



The data I have so far is as follows =>

A2015400017 early version with a pin sticking out equivalent Bosch 0 265 002 008

{This isn't meant to go with my differential}




Later models that look like mine =>

A2015402217 Normal ABS Bosch number 0 265 002 230 - 182 ex tax @ dealership

A2015402317 with ASD Bosch number 0 265 002 232 - 182 ex tax @ dealership



I want to replace with A2015402217 / Bosch number 0 265 002 230

But I don't want to pay 182 euros plus tax!



I've seen W124 sensors that are way cheaper but I don't know the differences in the sensors to know if they are going to work

For example Bosch number - 0 265 002 208 or Mercedes 1245401917

Does anyone know how I can find this out, other than buying and trying?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #2
Old 06-16-2015, 05:37 PM
Registered User

Join Date: Jan 2012
Posts: 7,024
If the sensors are 2 wire, I'd expect them to be a coil of wire wrapped around a magnet. This will make a AC wave form and generate voltage.

I'd expect other cars to use the same rear diff and sensor body so at that point only wire length would change. Have a look at the 190rev.com site, someone has probably tried this.
Reply With Quote
  #3
Old 06-17-2015, 01:29 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,452
I was thinking the same (about the wire length) - thanks.

190rev - hmmm - nice forum - almost impossible to access!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #4
Old 06-17-2015, 08:21 AM
WTB: 94/95 E320 Wagon

Join Date: Oct 2007
Location: Charleston SC
Posts: 2,640
No auto-recycle yard nearby that will yield up a sample from a 124 car that you can inspect?
__________________
Respectfully,
/s/
M. Dillon
'87 124.193 (300TD) "White Whale", ~392k miles, 3.5l IP fitted
'95 124.131 (E300) "Sapphire", 380k miles
'73 Balboa 20 "Sanctification"
Charleston SC
Reply With Quote
  #5
Old 06-17-2015, 10:30 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,452
Quote:
Originally Posted by Maxbumpo View Post
No auto-recycle yard nearby that will yield up a sample from a 124 car that you can inspect?
It is a part that gets snipped for ease of removal - well ease of removal of the differential

I have just found a new unused W124 sensor (the one listed above) for a not too too bad price (60 euros including postage) that I'm going to try...

...60 euro gamble - you pays ya money and ya takes ya chance!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #6
Old 07-09-2015, 01:22 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,452
Mini update

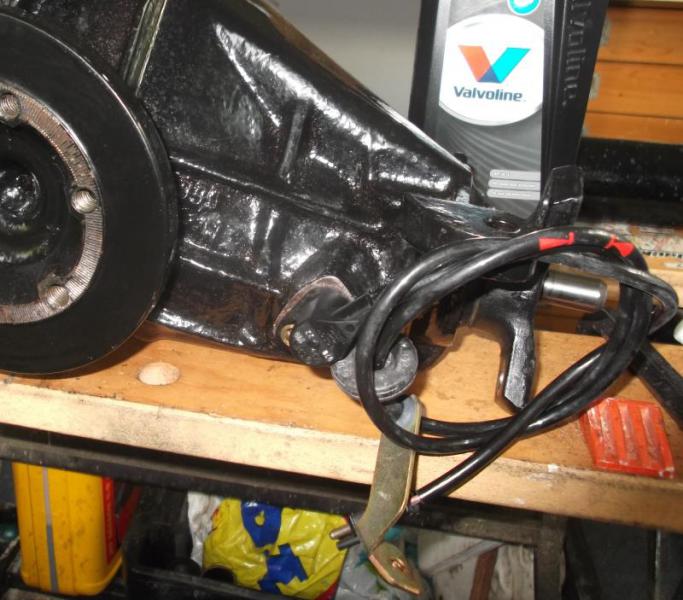

I got the Bosch W124 part and it fits in the differential and does not foul the sensor wheel on the pinion shaft.

No great shock.

A small step forward I know but an important one!

Attached Thumbnails
W201 Rear - in differential - ABS sensors - alternatives?-w201_018-differential-fitted-w124-abs-sensor.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #7
Old 07-14-2015, 01:53 PM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,452
Next update

Small steps - getting there slowly

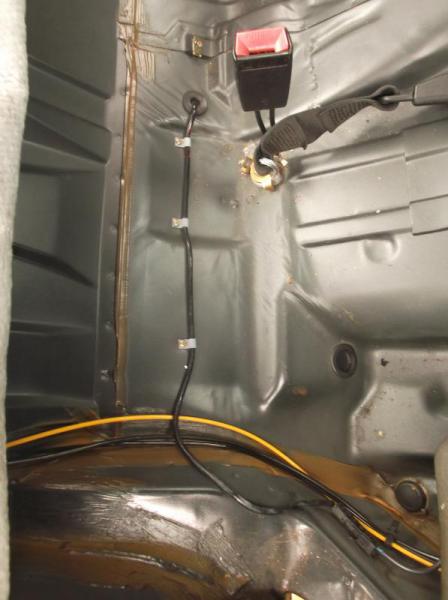

This is what the wire on the inside of the car is meant to look like wit the W201 sensor fitted

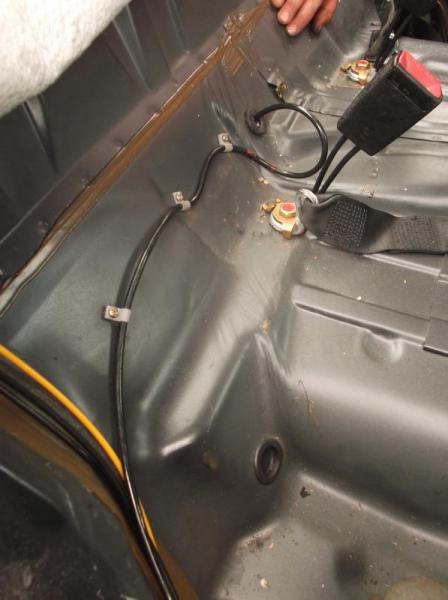

Here's the longer (good guess) wire of the W124 sensor fitted



Well I can live with that.

Still I'm not out of the woods just yet - I don't know if the sensor will work.

Fingers crossed.
Attached Thumbnails
W201 Rear - in differential - ABS sensors - alternatives?-w201_018-rear-abs-sensor-old-w201-sensor-wire.jpg   W201 Rear - in differential - ABS sensors - alternatives?-w201_018-rear-abs-sensor-new-w124-sensor-fitted.jpg
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #8
Old 03-17-2016, 01:14 AM
Registered User

Join Date: Mar 2013
Posts: 1
Any update on this? I need to replace my rear sensor as well.
Reply With Quote
  #9
Old 03-17-2016, 03:40 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,452
Sorry I forgot to update.

Works like a charm.

As far as I can make out the only difference is the length of the wire (W124 being a fatter bastard)
