I bought an Astro Pneumatic cone tool and found I had to remove plastic from the ID in order to get it to fit over the Cans on the Mercedes.

Try to get some idea of the diameter of the Cans before you purchase a Cone type tool so yo know it is going to fit over the can.

If you remember how to do the math you can measure the circumference of the can and work out the diameter.

__________________
84 300D, 82 Volvo 244Gl Diesel

In the UK they use CVJ instead of just CV. They also call boots gaiters!

Here is your search with CVJ insread of CV:
https://www.ebay.com/sch/i.html?_odkw=cv+boot+cone&rmvSB=true&_osacat=6000&_from=R40&_trksid=p2045573.m570.l1313.TR0.TRC0.H0.Xcvj+boot+cone.TRS0&_nkw=cvj+boot+cone&_sacat=6000

Better yet Sealey CVJ cone! (This brings up their boots too.)
https://www.ebay.com/sch/i.html?_odkw=cvj+boot+cone&_osacat=6000&_from=R40&_trksid=p2045573.m570.l1313.TR0.TRC0.H0.Xsealey+cvj+cone.TRS0&_nkw=sealey+cvj+cone&_sacat=0

Do Dorman or anyone else sell a cone plus boots in North America?

__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

On my '82 300D, the can diameter is 3.9" and the rim created by the crimp is 4.3". The length of the can is also a factor. It's a lot longer (deeper) than a typical CV joint.

__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl.

Good point. Sealey say that maximum joint diameter is 105mm (4.13") for cone and 110mm (4.33") for pneumatic & mechanical. Scaling off picture, it seems straight part of cone is slightly less than diameter. Maybe 4"?

__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

Ok, I went out and measured the cans on my 85 300D. They are original. Diameter of the crimp is 104mm, say 105mm max or 4.13". If the straight part of the cone was about 4" it would be fine.

__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

GREAT info here, especially the links .

THANX, All .

__________________
-Nate
1982 240D 408,XXX miles
Ignorance is the mother of suspicion and fear is the father

I did then what I knew how to do ~ now that I know better I do better

Even though I already have the boot gun, it is nice to know that the cone is cheap and works as good or better. I am not sure there is enough room for the gun to fit over the outer joint with the shaft still on the car (on an M B of course), whereas the cone might just barely fit. Although not having to remove the shaft(s) from the diff to install the boot(s) is an advantage, proper cleaning would not be possible. If the axle was quiet and previously filled with grease and not oil, I suppose just a good wiping with a rag and a grease re-pack would suffice before re-booting. The last set I did had oil, and the best way to clean them was in a solvent tank and compressed air. It worked very well. If they had grease in them, it would have been very difficult to clean them thoroughly even with a solvent tank, unless they were disassembled. I may get a cone and just sell the boot gun......Rich

__________________

All Diesel Fleet
1985 R107 300SLD TURBODIESEL
2005 E320 CDI (daily)

LOTS of parts for sale!


EGR block kit
http://www.peachparts.com/shopforum/diesel-discussion/355250-sale-egr-delete-block-off-plate-kit.html

1985 CA emissions 617 owners- You Need This!
Sanden style A/C Compressor Mounting Kit for your 616/ 617 For Sale + Install Inst.

Sanden Instalation Guide (post 11):
http://www.peachparts.com/shopforum/diesel-discussion/367883-sanden-retrofit-installation-guide.html

Please let us know the specific one you use if it works out well .

__________________
-Nate
1982 240D 408,XXX miles
Ignorance is the mother of suspicion and fear is the father

I did then what I knew how to do ~ now that I know better I do better

Removing the half shafts completely just isn't that difficult. Well worth the extra effort, in my view, to get the shafts onto a work bench. Plus, if your boots are worn out, the same probably goes for the output seals on the differential. And, if your joints are oil filled, there is no way you are going to get them properly refilled with the axles on the car and in a more or less horizontal orientation.

__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl.

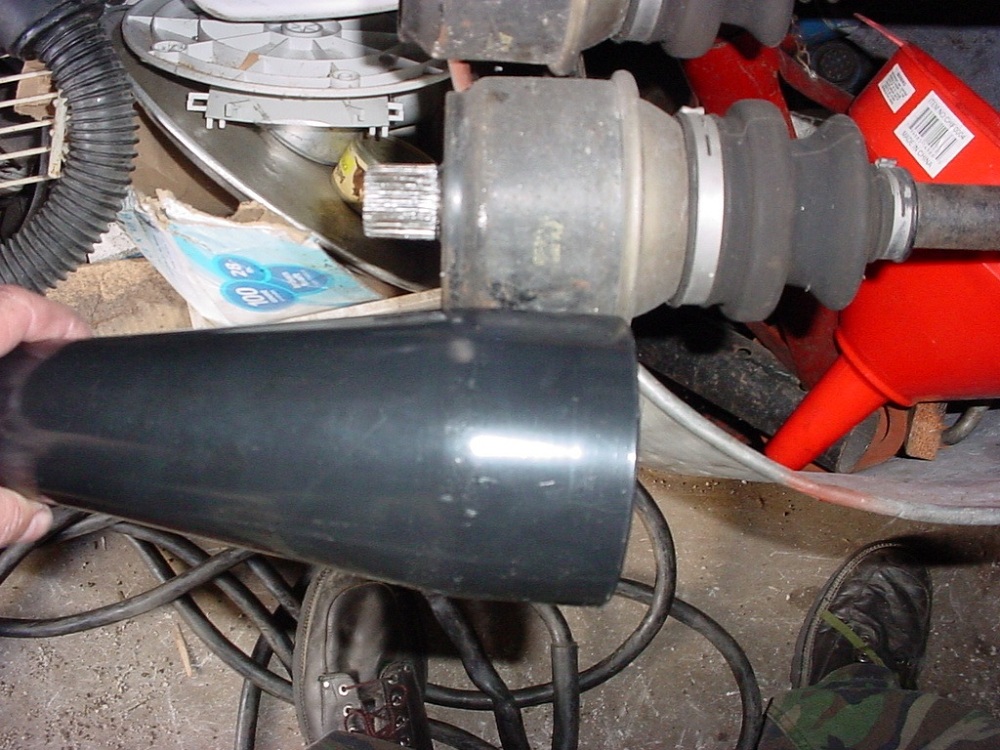

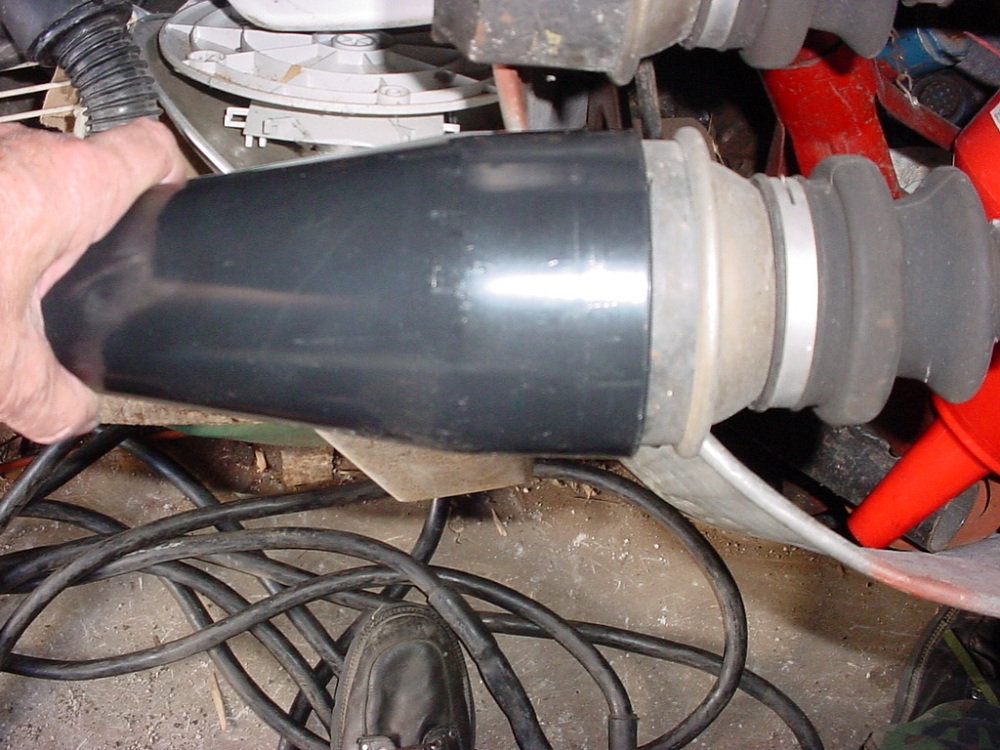

Unfotunately I cannot remember if I ever got the inside diameter of the cone hogged out enough to slide easly over the can. If I did I never took a picture of it.
However, the cone is not as fat as the crimped lip.
But I got it to work.

Attached Thumbnails



__________________
84 300D, 82 Volvo 244Gl Diesel

My thread on boot installation:
Has Anyone Used: Doorman Uni-Fit CV Boot Air Tool

__________________
84 300D, 82 Volvo 244Gl Diesel

After reading your thread and several of the others, I can now see why installing new axles is a popular option. Those expanders seem to not be quite as easy as they first seem and are quite expensive for a one-off job. The cones need to be of proper size and need a lot of force. Probably not doable with axle on car.

So now thinking of new or rebuilt axles for the 85 300D. Assuming I keep the existing axles, I would try and reboot them , then keep them as spares for either the 123 or my 72 350SL. Amazingly, the original 350SL boots look fine still after 45 years!

Will need some advice on sources of axles. PP has MB ($528), GKN/Loebro $520, DSS & OPParts about $99. Then there are Cardone rebuilts. Then annular vs Homo and again reliable sources.

__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

I found OE axles online for under $400. Anything new under $200 is going to be an often-problematic Chinese product. And a lot of them seem to be from the same factory sold under a number of different name brands at a wide range of prices.

Another possible option:
CVJ Axles - CV Axles & Steering Racks for all your needs

A new OE/OEM axle might make sense if you plan to put another 250k miles of the vehicle. I probably won't drive my 300D more than another 15K in my (or the car's) lifetime, so I am going to reboot and call it good enough. I believe that keeping my existing axles is a far better option than new Chinese parts, which would be a bit cheaper and a lot less up-front hassle.

__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl.

Best OE price I found, was from Skyland in Asheville, NC: https://www.oediscountparts.com/parts/index.cfm?searchText=1233500410&make=Mercedes-Benz&action=oePartSearch&siteid=215242

Where did you find the $400 axles?

My situation is same as yours. I may have my 300D for another 10 years but it probably will only do another 20k miles.

Rebooting my existing axles is my first choice, but how to do it? Not worth buying the gun and being in Canada, impractical to rent. Cone a possibility.

Anyone know what cvj reman charge for their rebuilds?

__________________
Graham
85 300D,72 350SL, 98 E320, Outback 2.5

Maybe you could find a local shop that has the tool and would be willing to install the boots on the shaft. (I am thinking about that approach myself.) If they just get the boots on the shaft for you, you could take them back home and finish the rest of the job (lube, clamps) yourself.
